Easy mounting for any pitched roof.
They handle anything nature throws at them, including heavy snow, thick ice, and high wind speeds while complying fully with all appropriate building regulations. Plus, to ensure loads are safe and spread optimally across your building’s structure, our expert engineers will calculate the ideal design for your roof’s unique shape, size, and slope while protecting its integrity.
STEEL

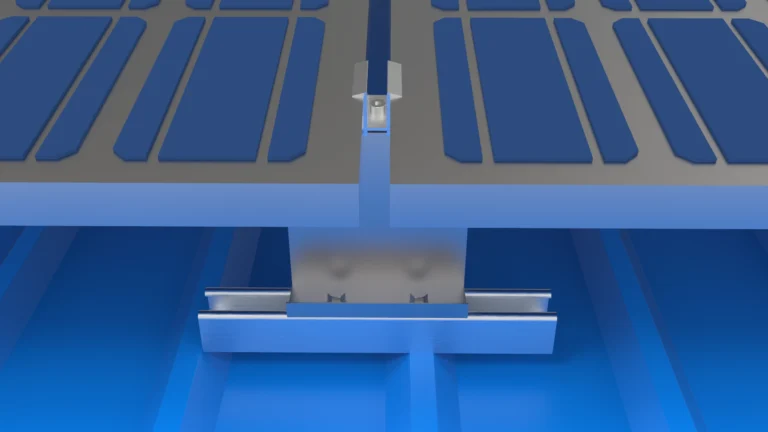

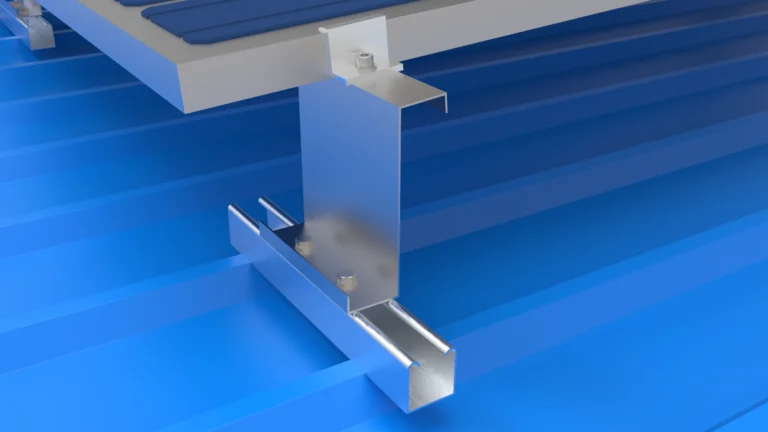

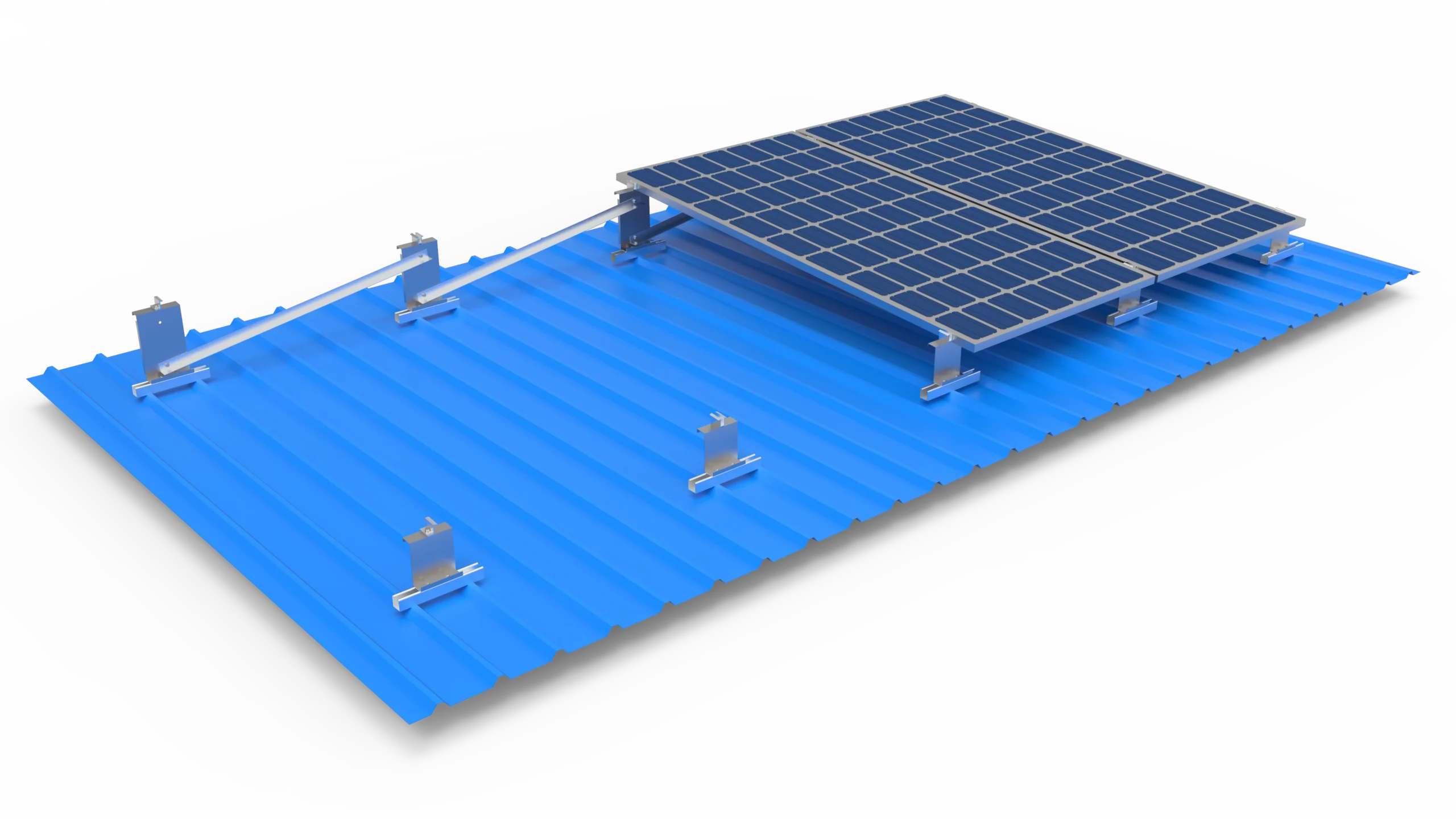

Z Bracket Assembly
The Z-bracket structure is a simple, efficient, and durable mounting solution for installing solar panels on corrugated metal roofs. The structure is named after its Z-shaped design, which allows it to easily fasten the solar panels to the roof without the need for complex mounting hardware.
Technical Specifications
- Type of Structures : Flush Mounted and Tilted Structure
- Module Orientation : Portrait & Landscape
- Material : Zinc-Magnesium Alloy Coating or HDGI/Galvalume/POSMAC
- Mounting Type : By Self Drilling Screw,Rivet & Adhesive
- Quick and easy to mount
- Optimal load transfer through roof cladding
- Universal rail suitable for any roof crest
- Increased height for thermal stability of system
- PV Modules are installed in Portrait orientation
- High roof clearance
ALUMINIUM

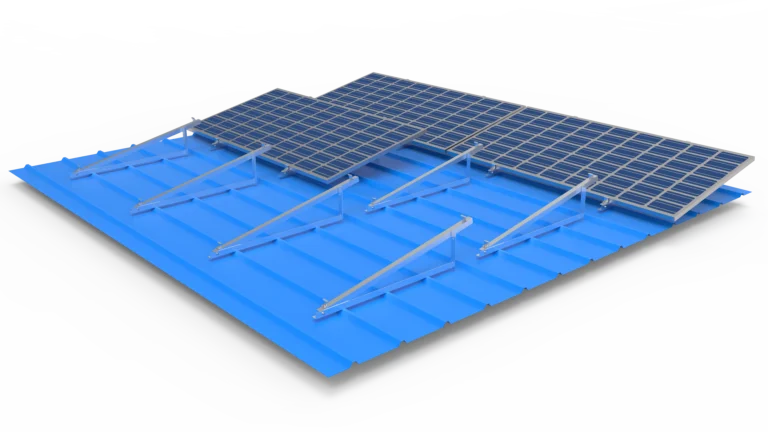

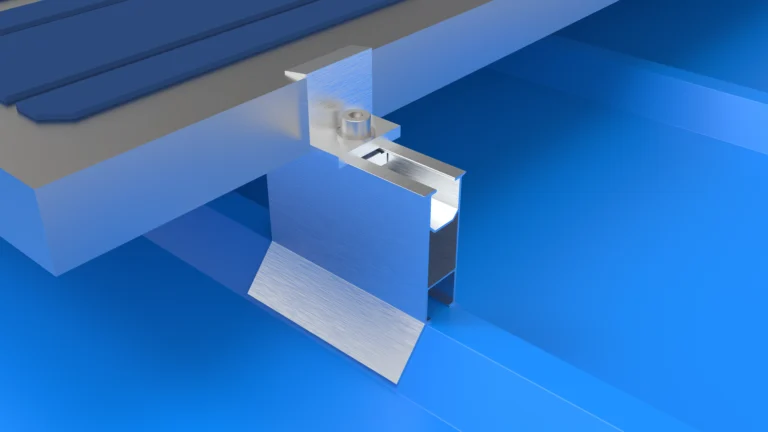

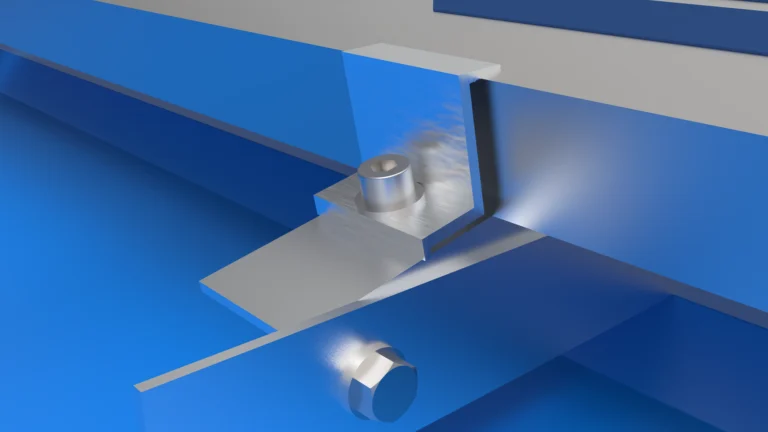

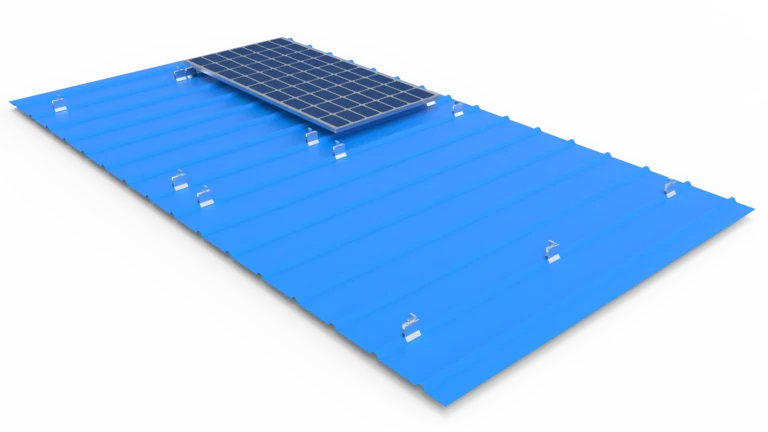

Elevated Module Mounting Structure
Elevated Structures provides the perfect solution for added support on flat, inclined, and trapezoidal sheet metal claddings. Engineered with precision, our system enhances structural stability, making it an essential choice for a wide range of roofing applications.
Technical Specifications
- Type of Structures : Flush Mounted and Tilted Structure
- Module Orientation : Portrait & Landscape
- Material : AL 6063 T6 & AL 6061 T6 Anodized/Non-Anodized
- Mounting Type : By Self Drilling Screw, Rivet & Adhesive
- Quick and easy to mount
- Optimal load transfer through roof cladding
- Universal rail suitable for any roof crest
- Increased height for thermal stability of system
- PV Modules are installed in Portrait orientation
- High roof clearance

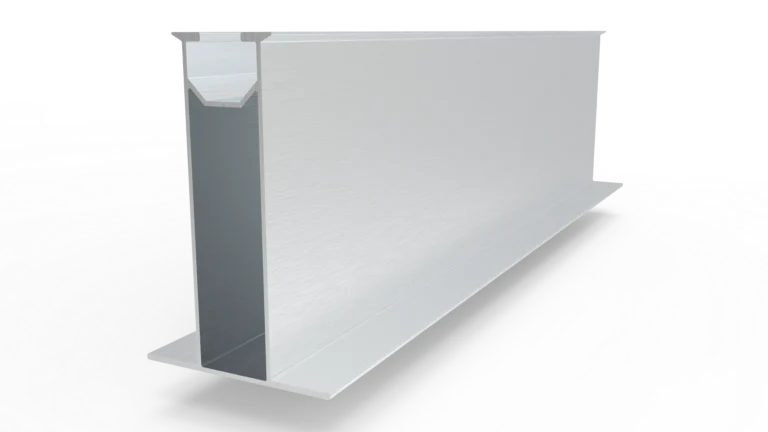

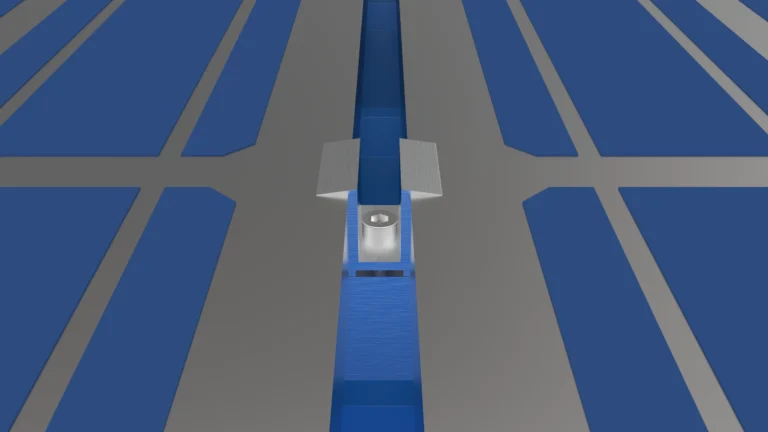

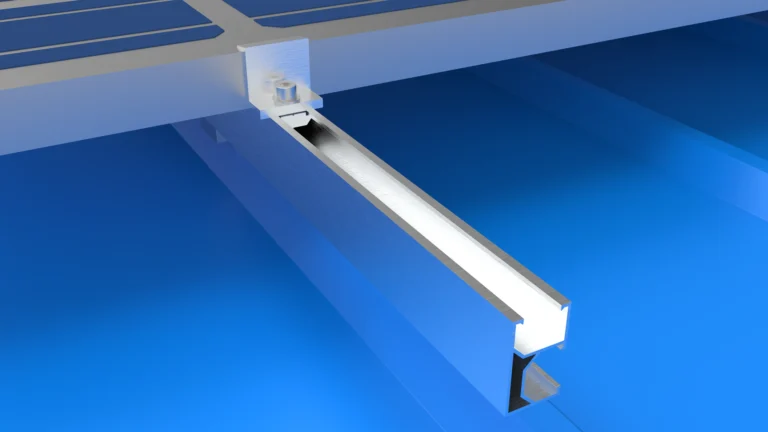

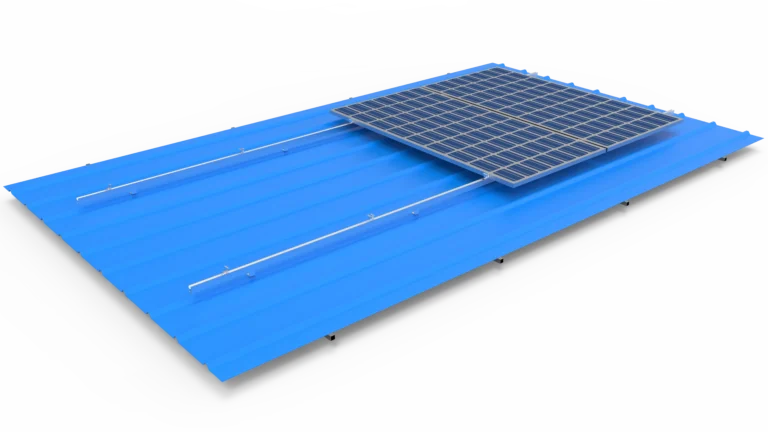

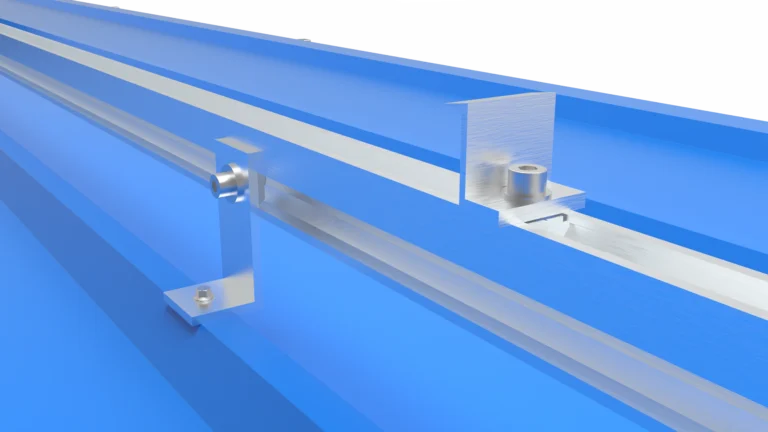

Rail Structure
The Long Rail System is a robust, high-strength solution for mounting solar PV panels on trapezoidal metal or asbestos roofs. It is designed for quick and easy installation, enabling the setup of high-capacity solar arrays in a short timeframe.it requires fewer roof penetrations, making it a more efficient and roof-friendly option.
Key Features
- Effortless Installation & Maintenance: Simple setup with minimal maintenance required.
- Landscape Module Orientation: PV modules are installed in a landscape configuration for better wind resistance.
- Purlin-Mounted Strength: Engineered to handle high wind loads with a strong, purlin-mounted structure.
- Universal Rail Design: Compatible with any roof crest, providing versatility across different roof profiles.
- Pre-Existing Roof Holes: Utilizes existing self-drilling screw holes, minimizing additional punctures.
- Premium Materials: Constructed from high-quality Aluminum 6063 T6 & AL 6061 T6 Anodized/Non-Anodized and genuine EPDM for longevity and performance.

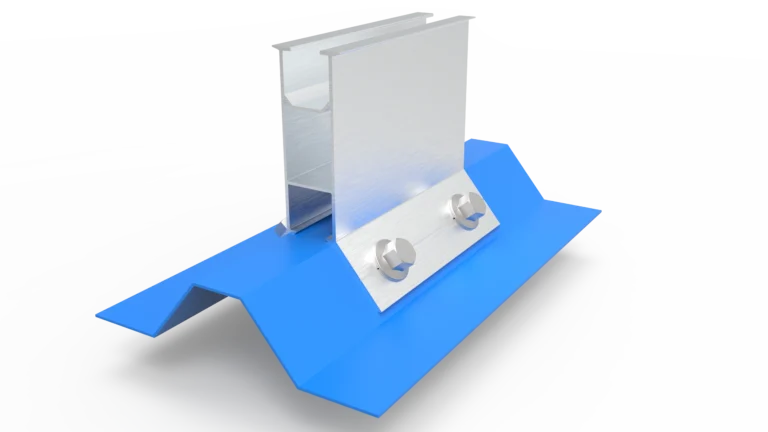

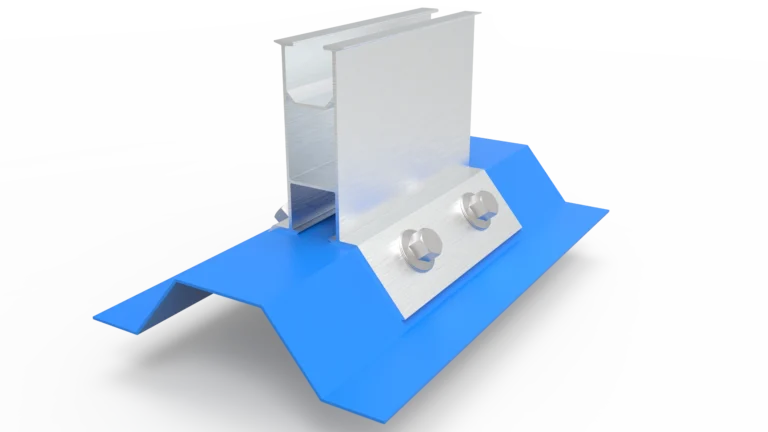

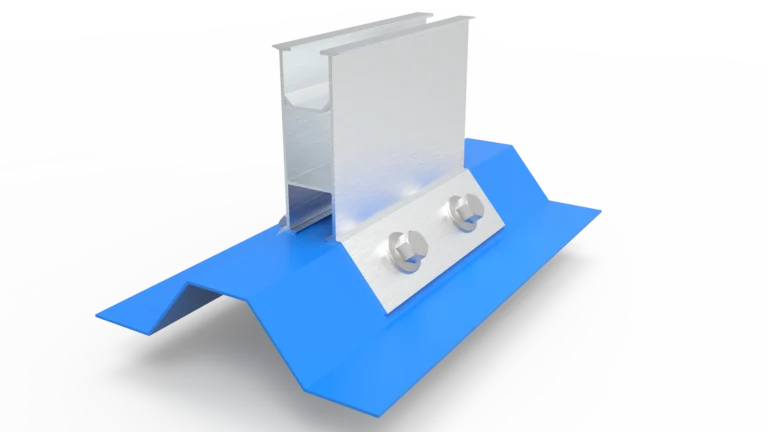

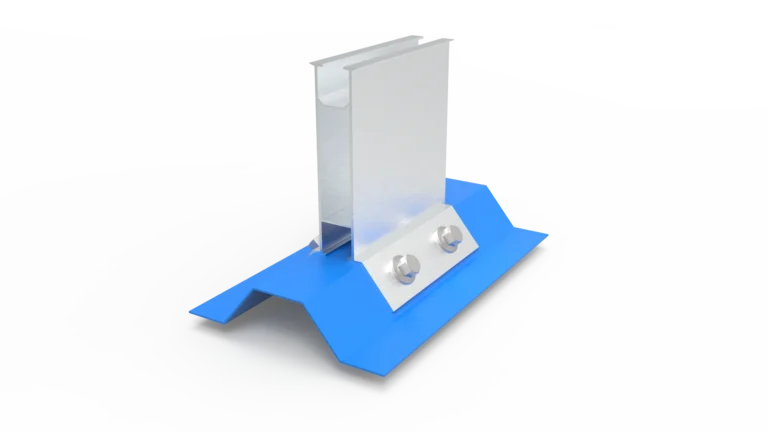

Landscape Rail
Our Landscape Rail is lightweight and optimized system is ideal for mounting solar PV panels on trapezoidal metal roofs. With quick and easy installation, it allows for high-capacity solar panel setups in minimal time, making it perfect for a wide range of large-scale applications.
Technical Specifications
- Lightweight & Optimized system
- Easy Installation & Maintenance
- PV Modules installed in Landscape orientation
- Compatible with all PV modules
- Roof clearance of 100mm
- Cost Effective Solution
- Available in Anodized/ Non-Anodized
Landscape Rail Dimensions
- Height: 80 mm | Customizable
- Length: 100 mm | Customizable
Raw Material Used
- Aluminum 6063 T6 & 6061 T6

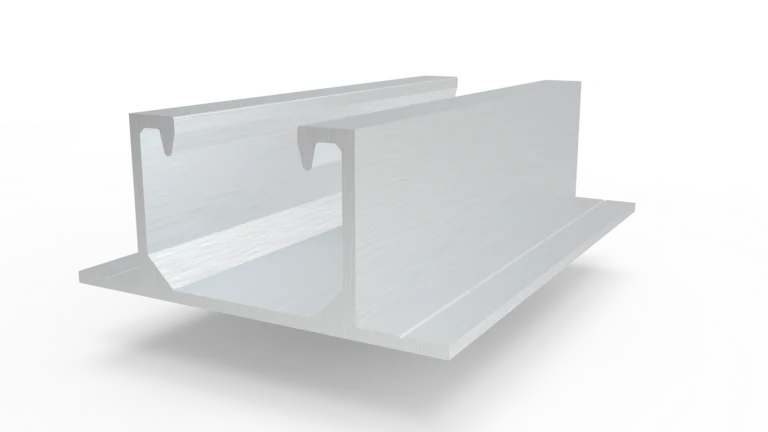

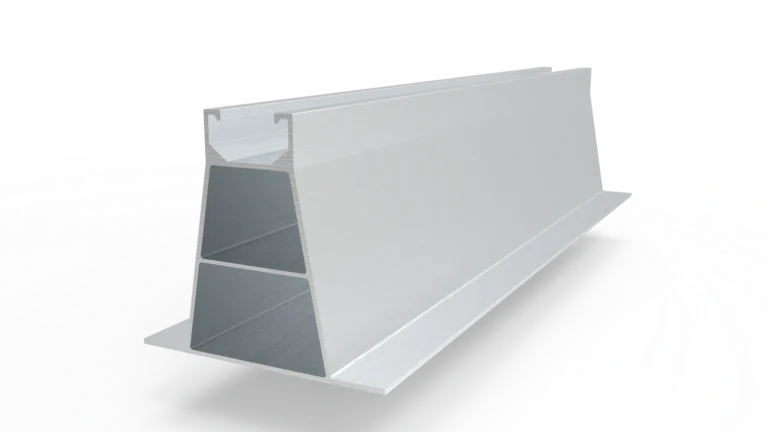

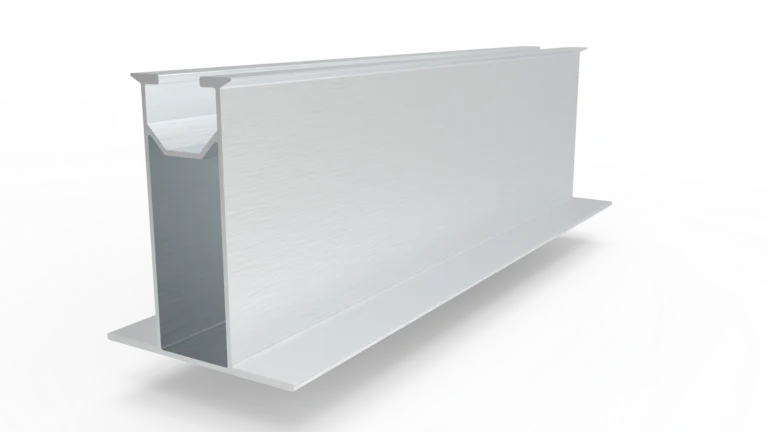

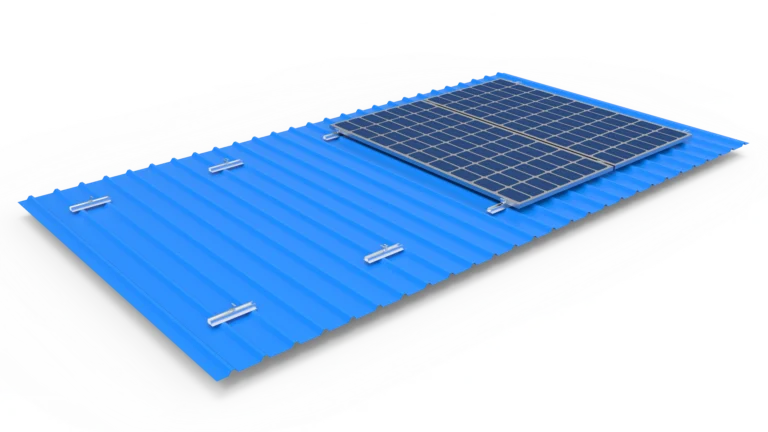

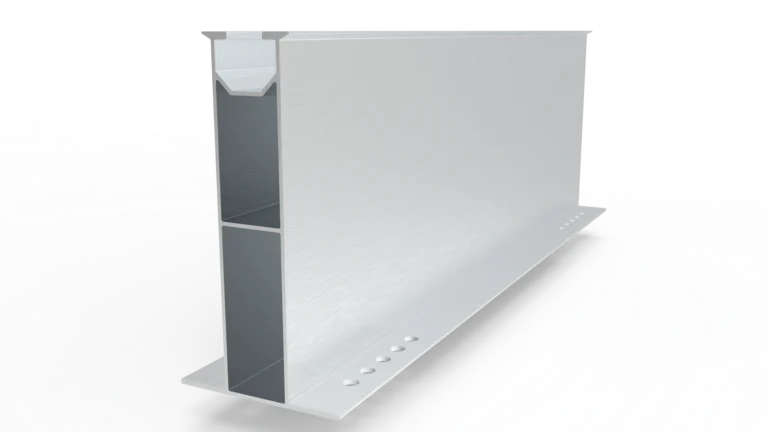

Mono Rail
Our Mono Rail System is a lightweight, efficient solution for mounting solar PV panels on metal roofs. Its easy installation enables quick setup of high-capacity solar panels, making it ideal for large-scale applications.
Technical Specifications
- Lightweight & Optimized system
- Easy Installation & Maintenance
- PV Modules installed in Portrait orientation
- Compatible with all PV module.
- Roof clearance of 100mm
- Cost Effective Solution
- Available in Anodized/ Non-Anodized
Landscape Rail Dimensions
- Height: 30 mm | Customizable
- Length: 300 mm | Customizable
Raw Material Used
- Aluminum 6063 T6 & 6061 T6
10
Years Of Experience
REQUEST A QUOTE
We're here to answer any questions you have and help you take the next step.
